One of the most important armor items for your vehicle, rock sliders protect your rocker panels while navigating obstacles off road, while also providing a multitude of recovery options and jack points.
Our sliders are constructed with a one piece 1/4" metal backing plate that bolts directly to threaded holes in the frame. Each side plate is secured to the frame with grade 10.9 bolts.
The tubing is all 1.75" round .120" thick wall DOM tubing, cut on our CNC tube plasma cutter and bent in house. 1/4" gussets also help to strengthen the weldment at the back plate attachment points.

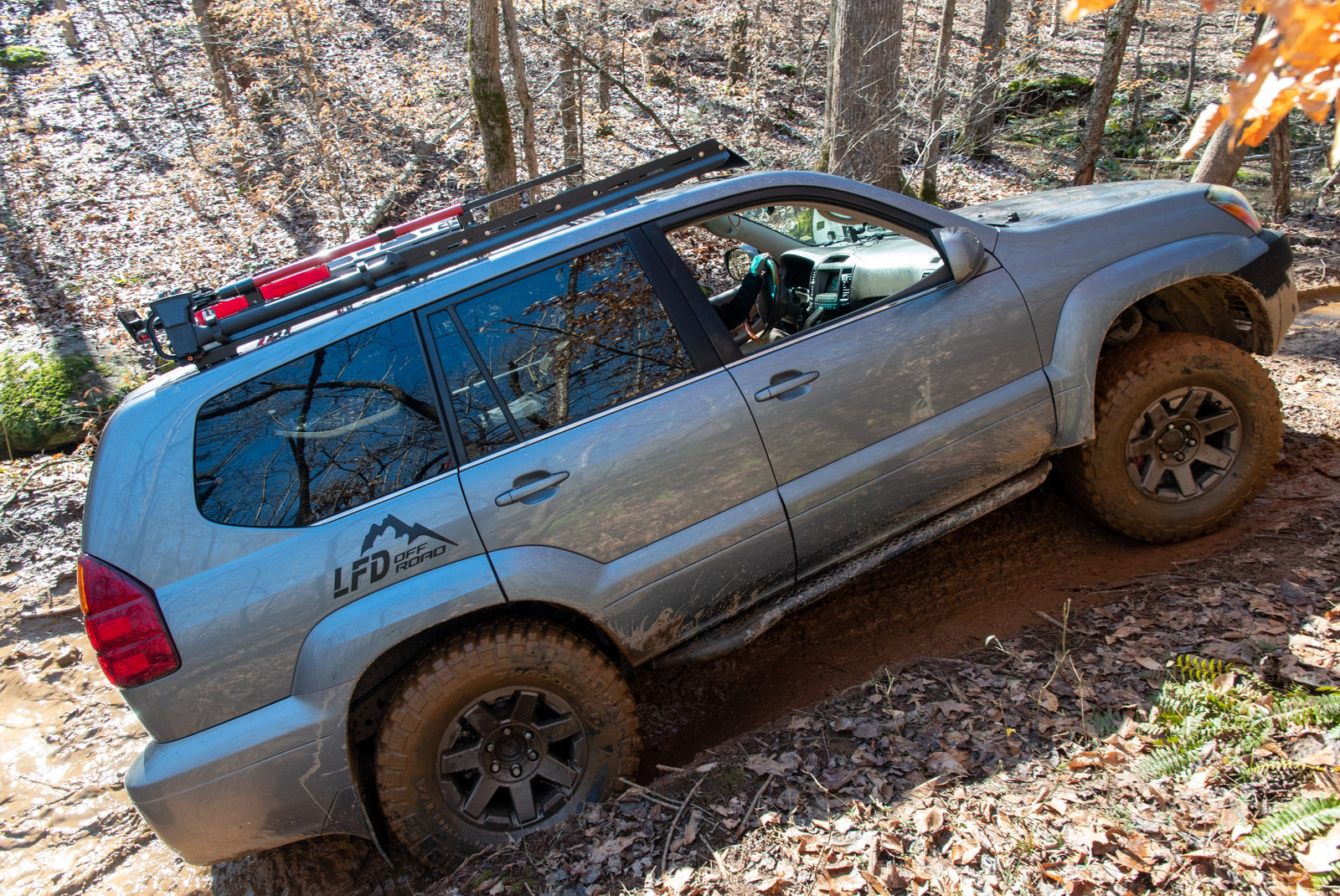

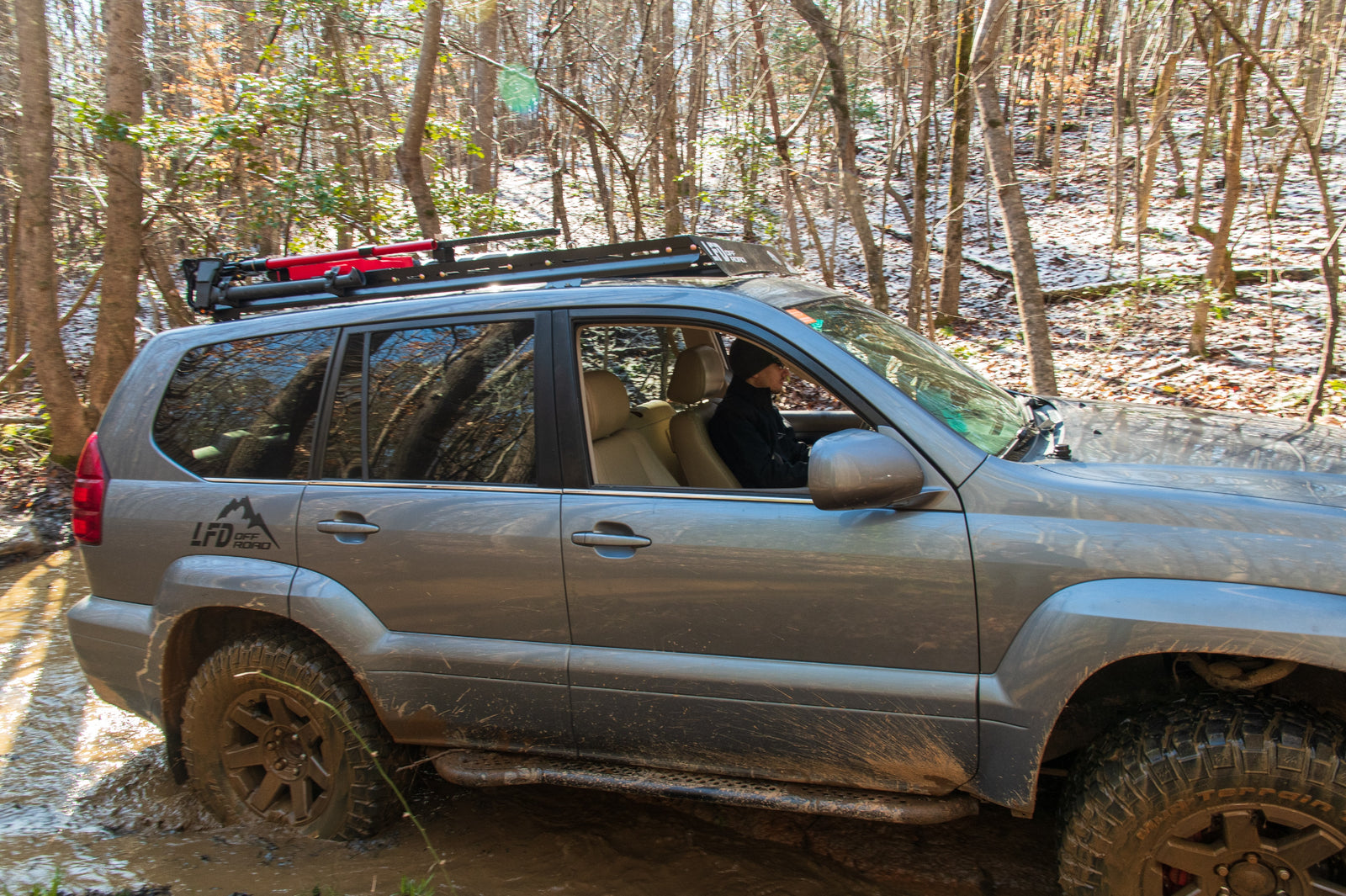

Sliders are used off road to protect your rocker panel from damage from objects such as rocks, stumps, trees, etc. In technical situations they can also be used to help you "slide" over or rotate around an obstacle, hence the name. Sliders can also be used with a Hi-Lift jack along their entire length to lift a vehicle, or as a hard point for recovery operations to pull a vehicle sideways (non-kinetic pulls).
Our sliders ship raw steel, no paint or powder coating, as a pair, with installation hardware. The customer is responsible for painting or powder coating. We recommend a simple spray paint, sliders will often need repainting if used in the field. We recommend using a M8 tap and penetrating oil to chase your threads in your frame prior to installation; this will remove dirt and rust and make the bolts go in the frame easier.
This listing is for "flat" sliders with a bumpout and filler plates on the entire slider (not pictured, we will update photos next week when we're back in the office). These have zero angle, so they are friendlier to use as a step as well as offer more rear door protection with the bumpout.
Sliders are built to order and subject to lead times.
Non KDSS GX470 ONLY!
Often confused for running boards or side steps, sliders differ in that they are fully constructed of metal and bolt directly to the vehicle's frame. Running boards and side steps bolt to the vehicle's body instead, and are vary rarely made as tough as sliders.
