SEAL Slim 12.5rs 12V Winch W/ Synthetic Rope & Wireless Remote
SEAL Slim 12.5rs 12V Winch W/ Synthetic Rope & Wireless Remote
SEAL Slim 12.5rs 12V Winch W/ Synthetic Rope & Wireless Remote
SEAL Slim 12.5rs 12V Winch W/ Synthetic Rope & Wireless Remote
SEAL Slim 12.5rs 12V Winch W/ Synthetic Rope & Wireless Remote
Click to open expanded view

SEAL Slim 12.5rs 12V Winch W/ Synthetic Rope & Wireless Remote

Sale price
$1,395.95
Regular price
$1,680
You save
17%
Taxes and shipping calculated at checkout
In stock and ready for shipping
Lead Times

Please note that items marked as "in stock" are still subject to shipping queues, and typically ship within 1-5 business days.

Backorder items are subject to the following lead times.

  • Crossbars & Roof Racks | 3-4 weeks
  • Winch Mounts | 4-6 weeks
  • Sliders & Skids | 4-6 weeks
  • Bumpers | 4-8 weeks

For our most current lead times on a specific vehicle's products click here. Please note all lead times are estimates and are not guaranteed.

Product information

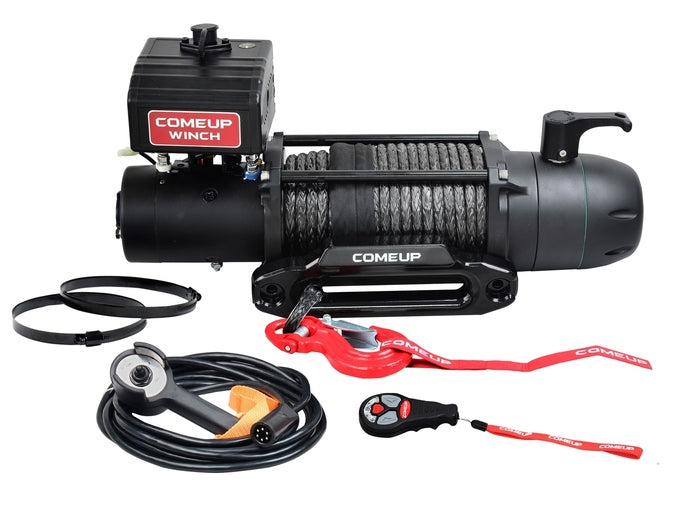

12V DC severe duty winch rated at 12,500 lbs pulling meets or exceeds your expectations.

The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.

Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch.

New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5-degree increments.

Hardened steel, 3-stage planetary gear train for efficient and reliable operation. Cutout switch prevents the vehicle battery from draining when no use.

Both built-in digital two-way wireless remote control and wired waterproof remote control.

A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.

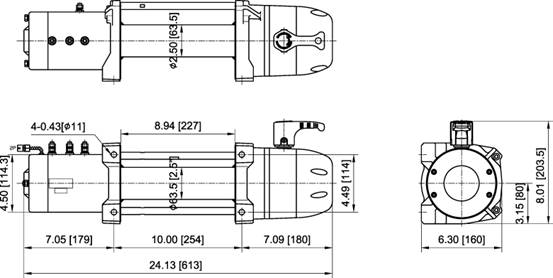

Specifications:

  • Rated Line Pull 12,500 lbs (5,670 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 225:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5" x 9" (63.5 x 228 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 7/16" x 82' (11 mm x 25 m)
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
  • Winch Weight 61.7 lb (28 kg)
  • Gross Weigh 89.1 lb (40.5 kg)
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
